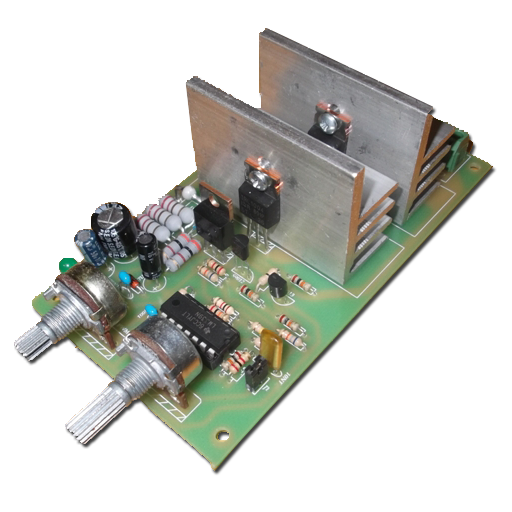

DC Motor Kontrol Kartı - 30 Amper
1.036,53 TL
190,03 TL den başlayan taksitlerle!
Yüksek güçlü motorları tek yönde hareket ettirebileceğiniz sağlam ve test edilmiş bir devredir. 30A e kadar dayanmaktadır.
- Power Supply 8 -30 VDC
- Frequency Adjustable 400HZ to 3kHz
- Jumper select Fixed at 100Hz or Adjustable 400Hz to 3kHz
- Duty cycle 0-100%
- DC motor current up to 30A ( Max )
- LED power on indicator
- 2 Power MOSFET with Big heat sink
- PCB size : 2 5/8" x 4 1/2" x 1 1/2" ( High )
- All module is tested again before shipping.
- In case, board is installed in a box, needs adequate ventilation. Extra cooling ( only Fan is recommended, if board is to run with maximum current rating )
- Customer need to soldering the connection ( Battery , Motor , HHO generator )
Bu ürüne ilk yorumu siz yapın!
